Endineering, Procurement, Installation,Construction &Operation of Mared Abadan Dam &ship - Lock by EPC Method (EPC)

Endineering, Procurement, Installation,Construction &Operation of Mared Abadan Dam &ship - Lock by EPC Method (EPC)

Location: Khoozestan Province,Abadan city, on the Karoon River

Activity: Dams and Water Resources

Client: Khoozestan Water and Power Authority

start date:

Completion Date:

Project Description:

Services:Client consultant in EPC project SWECO Co.

Objectives:

-Flow and tidal affects control and seepage prevention of Persian Gulf brackish water to Karoon River

-Upgrading of required water quality for Agricultural Lands

-Providing required condition for development of seaport,sailing,vessel industry and marine transportation

-Employment,Tourism

-Fishery improvement and development

Project Specification:

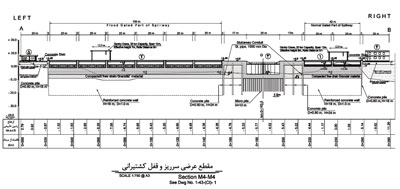

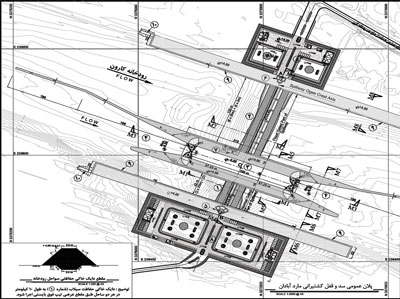

Dam Type : concrete diversion dam

Dam length:235 m

Lock Chamber: 25 meter width,160 meter length,10 meter height, equipped with 2 series of sector gates.

Normal Elevation:1.2 m above sea level

Normal spillway: with width of 40 m,capacity of 240 m3/sec and 2 vertical lift gates.

Flood spillway: with width of 120m,capacity of 1080m3/sec and 6 vertical lift gates.

Total volume of Concreting:136,000 m3

Total Volume of Embankment: 1.5 million m3

Status: under construction
